滑轨LED显示屏
面板像素(Panel pixels): P1.875/P2/P2.5/P4/P5
箱体尺寸(Cabinet size): 定制
亮度(Brightness): 800-1000cd/m2
刷新率(Refresh rate): ≥1920HZ
防护等级(Protection class): IP30
Product Introduction

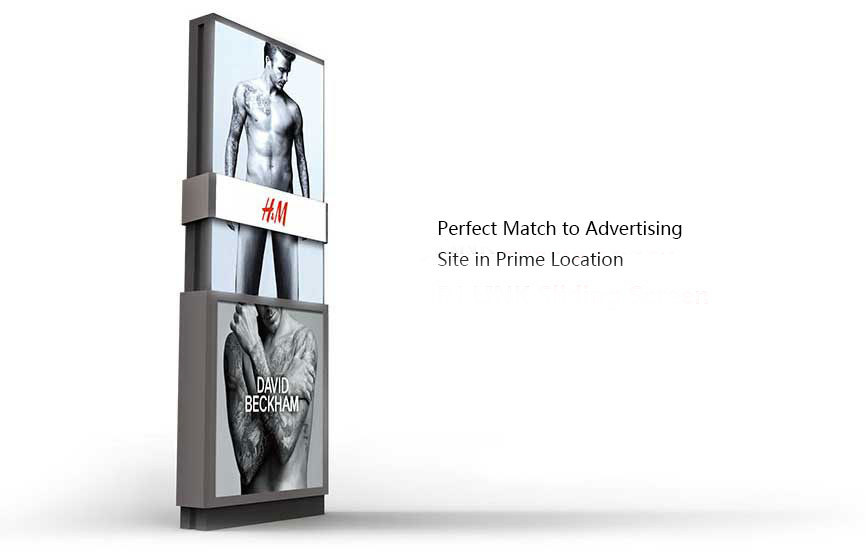

       LED滑轨屏是一种将传统屏与机械智能相融合的创意屏,通过主屏和副屏相互配合的展现形式,展现更有创意的画面效果。可以模拟重力、画面过度、画面透视等效果,作为创意广告载体是一个非常不错的选择!

滑轨LED显示屏

       光影大师在滑轨LED显示屏产品的外形设计、结构设计、材料选择上都有所讲究,不仅外型美观,而且安装轻盈便捷、质量安全可靠。独有的创意风格使得滑轨LED显示屏在各大商圈、交通枢纽、展览展示等行业得到了广泛使用。

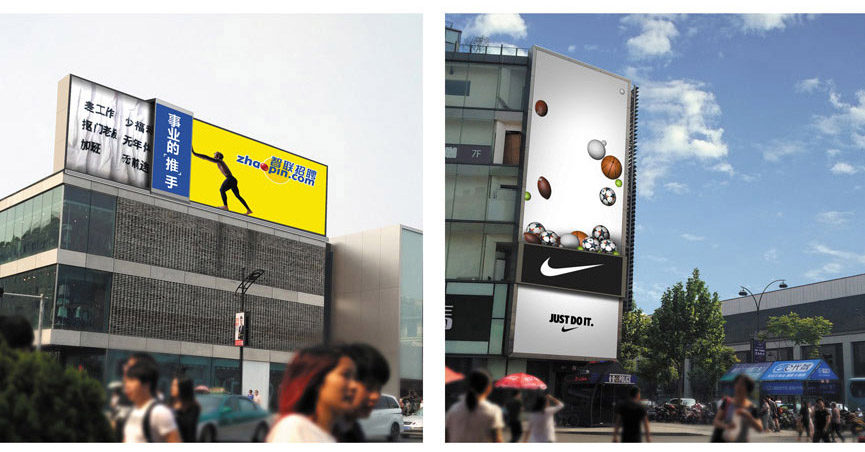

滑轨LED显示屏的应用场景:

滑轨户外LED显示屏

滑轨LED显示屏技术参数:


Model
p1.875p2p2.5p4p5
Pixel pitch(mm)        1.875mm
2mm2.5mm4mm5mm
LED TypeSMD1515SMD1515SMD2020SMD1921SMD2727
Application Environmentindoorindoorindooroutdooroutdoor
Pixel density(pixel/㎡)2844442500001600006250040000
LED panel size    240mm*240mm320mm*160mm320mm*160mm320mm*160mm320mm*160mm
LED panel density128*128160*80128*6480*4064*32
Scan    1/321/201/321/101/8
Refresh rate(HZ)≥1920≥1920≥1920≥1920≥1920
Cabinet sizecustomizecustomizecustomizecustomizecustomize
Brightness800cd-1000cd800cd-1000cd800cd-1000cd3500cd-4500cd3500cd-4500cd
Average power(w/㎡)≤240≤220≤230≤260≤260
Maximum power(w/㎡)≤660≤650≤640≤750≤750
Maintenance methodFrontFrontFrontFrontFront
Input voltage    AC100V-240VAC100V-240VAC100V-240VAC100V-240VAC100V-240V
Service life100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours


LED opening and closing screen.jpg
